parameter

⊙Cell model: 32650/3.2V/6Ah

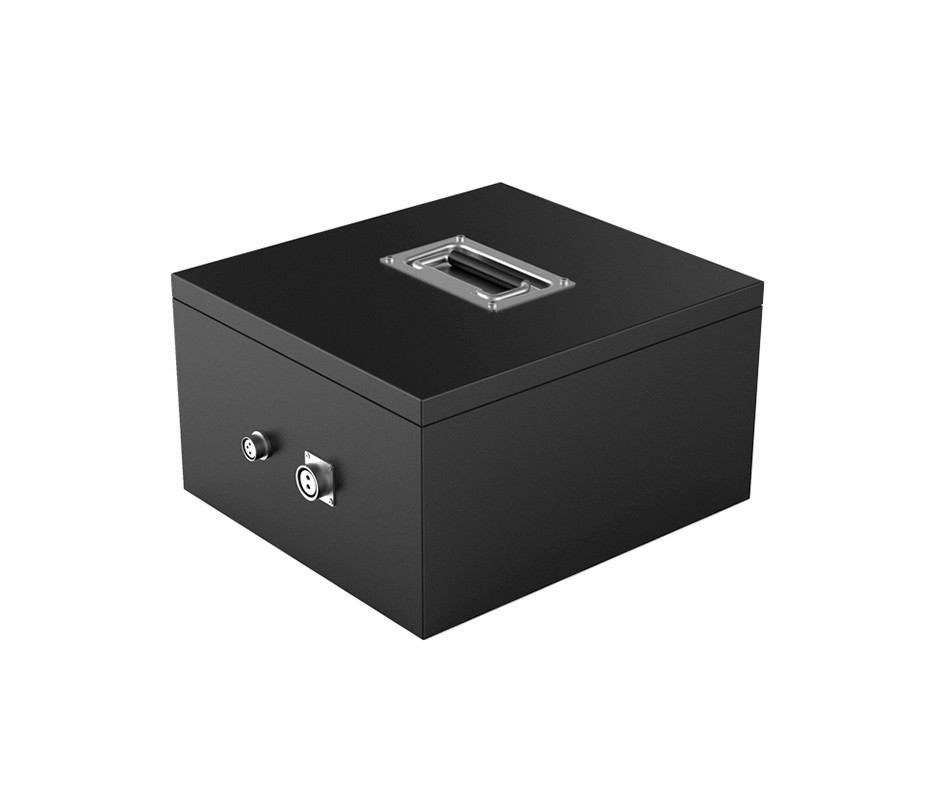

⊙Battery specifications: 32650-8S16P/24V/96Ah

⊙Nominal voltage: 24V

⊙Nominal capacity: 96Ah

⊙Charging voltage: 29.2V

⊙Charging current: ≤20A

⊙Discharge current: 10A

⊙Instant discharge current: 50A discharge cut-off voltage: 18.4V

⊙Internal resistance of finished product: ≤150mΩ

⊙Battery weight: 23.0kg

⊙Product size: 350*320*180mm (Max)

⊙Charging temperature: 0～45℃

⊙Discharge temperature: -20～60℃

⊙Storage temperature: -20～60℃

⊙Temperature protection: 65℃±5℃

⊙Battery shell: sheet metal shell

⊙Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, etc.

⊙Application areas: wide range of applications, marine monitoring, industrial machinery and equipment, emergency power supplies for portable transmitters, etc.

Highlights

Quick connection: using push-pull self-locking aviation connector, fast, safe and reliable;

Data communication management: using Seiko IC+TI charger management chip, precise data transmission, precise temperature control, to minimize safety hazards.

Safe battery pack, special handle, good low temperature performance, long cycle life;

The battery pack has a high cycle life and conforms to the value concept of low carbon, energy saving and environmental protection;

Shockproof and waterproof: The shockproof structure design is filled in the cold-rolled sheet metal shell to meet the requirements of high safety and high reliability.

Application Classification

Twisted car battery

Balance car battery

Smart home and other batteries

Power grid base station energy storage battery

Home energy storage battery

Portable energy storage power supply

Solar photovoltaic battery
